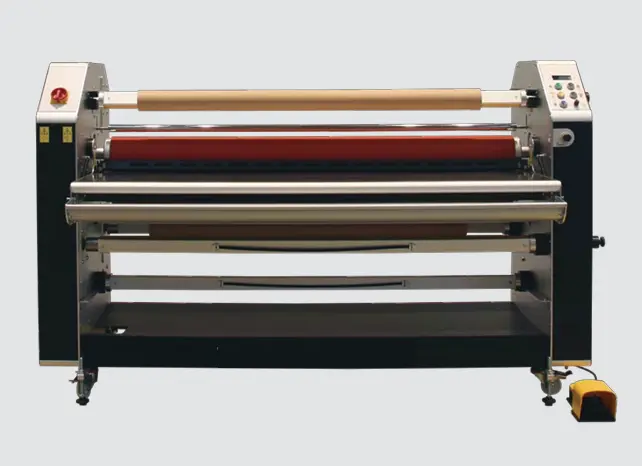

Our 5100 Hot - Cold Laminator
-Max. processing width 1650mm
-Max. processing speed Max. 8mtr/min
-contact pressure Max. 1.6N/mm
-Max. substrate thickness 40mm
-Roller heating Max.(Top roll) 70deg
-Max unwind diameter 800mm
-Max unwind weigtht 800kg
-Max rewind diameter 250mm
-Core diameter 3inch
The 5100 Hot-Cold Laminator is a pressure sensitive machine with heat assist on the top roller (70 degrees). It offers real flexibility and high-performance levels for small and medium-sized laminating jobs.
The 5100 Hot-Cold laminator can laminate multiple materials in one pass. and also remove liners in the same pass
Our 5101 Cold Laminator
-Max. processing width 2010mm
-Max. processing speed Max. 8mtr/min
-contact pressure Max. 3N/mm
-Max. substrate thickness 8mm
-Max unwind diameter 800mm
-Max unwind weigtht 1000kg
-Max rewind diameter 500mm
-Core diameter 3inch or 4 inch or 6inch
The 5101 Hot-Cold Laminator is a high pressure laminating machine for heavy lamination jobs Like laminating a double sided tape to a Vinyl or carpet flooring system. It offers real flexibility and high-performance levels for small and medium-sized laminating jobs.
The 5101 Cold laminator can laminate multiple materials in one pass.
